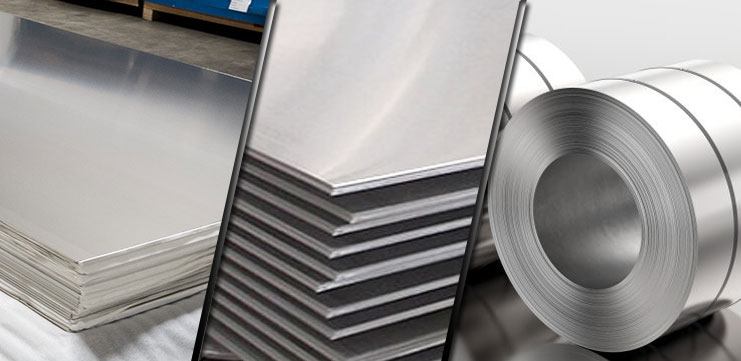

301 Stainless Steel Sheet Manufacturer in India
Leading Exporter & Supplier of AISI 301 Plate, ASTM A240 Type 301 Stainless Steel Sheet, SS 301 Coils, 301 Stainless Spring Steel Sheet, 301 Full Hard Stainless Steel Sheet, 301 1 2 Hard Stainless Steel Sheet, UNS S30100 Stainless Steel Hot Rolled Plates, 2B Finish Stainless Steel 301 Sheet in India.
Table Of Content
- SS 301 Sheet Compositions
- 301 Stainless Spring Steel Sheet Dimensions
- ASTM A240 TP 301 Steel Sheet Applications
We are largest stockist of 301 SS Plate, 301 1 4 Hard Stainless Steel Sheet, Stainless Steel 301 Perforated Sheets, SS 301 Plate 2R (BA) Finish, Stainless Steel 301 Slatting Coils and SUS 301 Chequered Plate, SS 301 Cut To Size Plates, AISI 301 Plate BA Surface Finish, Stainless 1.4310 Spring Steel Sheet, ASME SA240 Grade 301 Shim Sheet.
Aakash Steel is ISO certified manufacturer and supplier of 301 stainless steel sheets in India. We are also exporter, stockist, and distributor of ASTM A240 Type 301 Stainless Steel Plate in a range of different conditions/tempers depending on the level of strength required. We are exporting UNS N0 S30100 Plate to Malaysia, Indonesia, Singapore, Oman, South Africa, Nigeria, Saudi Arabia, Qatar, UAE, Iran, Iraq, Kenya, UK, Turkey, Thailand, Sri Lanka, Republic of congo & China.
AISI Type 301 Stainless Steel Sheet contains 17% Chromium / 7% Nickel austenitic stainless steel. , which provides high strength and ductility when cold worked. 301 Stainless Spring Steel Sheet has excellent corrosion resistance properties. 301 SS Sheet is well suited to welding and forming and drawing. This high strength of 301 grade steel is available in several conditions or tempers. 301 SS Full Hard Sheet has good resistance to oxidation at temperatures up to 1550°F, but 301 SS Sheet is not recommended for use above 1600°F. 301 SS Sheet is resistance to a variety of corrosive media. However, it’s corrosion resistance properties are not as good as the 18-8 chromium-nickel steels.301 stainless steel sheet mechanical properties for the different tempers of 301 are obtained by cold working and not by heat treating. 301 Annealed stainless steel sheet material has a tensile strength of 75ksi minimum and is used for deep and shallow formed parts.AISI 301 Plate has good resistance to atmosphere corrosion and its bright attractive surface makes it an excellent option for decorative structural applications. We also supply AISI 301 Sheet in its 301 Full Hard Stainless Steel Sheet, 301 1/2 Hard Stainless Steel Sheet and 301 1/4 Hard Stainless Steel Sheet conditions.
Aakash Steel is one of the most reputed Importers and Exporters in all types of 301 Stainless Steel Plate, 301 high yield stainless steel sheet, ASTM A666 Type 301 stainless steel plate, ASME SA666 stainless steel 301 sheet, ASME SA240 301 stainless steel strip, 301 Stainless Steel Coil, ASTM A240 301 Stainless Steel Plate as well Distributor of 301 Stainless Steel Plate in India.
We have huge ready stock of 301 Stainless Steel Hot Rolled (HR) Sheet, 301 Stainless Steel Coils, 301 Stainless Steel CR Plates, SS 301 Shim Sheet, Stainless Steel 301 Plain Sheets,SS 301 HR Plates, Stainless Steel 301 Perforated Sheets & Plates, 301 Stainless Steel Galvanized Plates & Sheets in our inventory at reasonable price in India.
Features of 301 stainless steel sheet and AISI 301 SS plates:
- High toughness and impact resistance
- These sheets exhibit excellent corrosion resistance
- They have excellent workability including stamping, welding, machining and fabricating
- They have a High strength which helps them to withstand in high temperature
- These sheets have a smooth surface finish that can be easily sterilized and cleaned
- The sheets are Temperature resistance to high heat
Before Dispatching AISI 301 Sheet & Plate check the quality and durability of various quality tests are done. Some of those tests include:
- Third party inspection
- Flaring test
- PMI test
- Flattening test
Stainless Steel 301 Plate Specifications
| 301 Stainless Steel Plate Standard | MSRR, AMS, BS, ASTM / ASME |
|---|---|
| AMS | AMS 5902 301 3/4 Hard Stainless Steel sheet and strip, cold rolled, 175ksi min AMS 5517 301 1/4 Hard Stainless Steel sheet and strip, cold rolled, 125ksi min AMS 5518 301 1/2 Hard Stainless Steel sheet and strip, cold rolled, 150ksi min AMS 5519 301 Full Hard Stainless Steel sheet and strip, cold rolled, 185ksi min |
| 301 HR Plate Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, etching,hair line, sand blast, Brush, etc |
| SS 301 Sheet Finishes | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Sizes & Length | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1250mm x 2500mm, 1500mm x 3000mm to 6000mm, 2000mm x 4000mm to 6000mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm, 2m, 2.44m, 3m, 36″ X 120″ or 48″ X 144″, 4′ x 8′, Cut to size available |
| AISI 301 Sheet Thickness Tolerances | 0.1mm to 100 mm Thk |
| Width | 10-2500mm |
| Process | Stainless Steel Hot Rolled Plates and Stainless Steel Cold Rolled Plates |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Temper | Annealed, 8K etching Stainless Steel Sheet |
| Condition | 301 Stainless Steel Polished Plates on both sides |
| Available Stock | Shim Sheet, hot rolled, cold rolled, SS Plate, Sheet, Coils, Foils, Rolls, Plain Sheet, Strip, Flats, Clad Plate, Rolling Sheet, Flat Sheet, Rolling Plate, Flat Shim, Blank (Circle),annealed, soft annealed, descaled, sheared, tread plate, Checker Plate |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Manufacturers | Arcelor Mittal, VDM, Jindal Stainless, Thyssenkrup, POSCO, Aperam, DKC Korea, Baosteel, TISCO, Nippon Metal, Outokumpu |
| Quality | EN 10204/3.1B 100% Radiography Test Report Excellent corrosive resistance, good thermal resistance Customer support after-sales service Huge Stock, Timely delivery Raw Materials Certificate High special strength, high melt point Strict Control from Raw Material to Finished Sheet Third Party Inspection Report, etc |
| profiling | we use numerous profiling methods to provide a full profiling service including: Laser Plate Cutting Stainless Steel Plate Oxy-propane Flame Cutting Plasma Plate Cutting Stainless Steel Sheet |
| We are Specialized in | ASTM A240 Type 301 Plate: material 3/16″ [5.00 mm] and over in thickness and over 10″ [250 mm] in width 301 Stainless Steel Sheet: material under 3/16″ [5.00 mm] in thickness and 24″ [600 mm] and over in width AISI 301l Clad plate: Clad plate is a composite steel plate made by bonding plate etc. Stainless Steel 301 Strip: cold-rolled material under 3/16″ [5.00 mm] in thickness and under 24″ [600 mm] in width |
| STANDARD | UNS | JIS | WERKSTOFF NR. | AFNOR | BS | GOST | EN |
| SS 301 | S30100 | SUS 301 | 1.4310 | – | – | – | – |
AISI 301 Sheets Finishes
| Finish | Thickness | Characteristics of Stainless Steel Plates |
| No. 1 | 3.0mm~100mm | Finished by hot-rolling, annealing and pickling, characterized by white pickled surface |
| No. 2B | 0.3mm~6.0mm | Finished by heat treatment, pickling after cold rolling, followed by skin pass line to be more brighter and smooth surface |
| No. BA (Bright Annealed) | 0.5mm~2.0mm | Bright heat treatment after cold rolling |
| No. 4 | 0.4mm~3.0mm | Polishing with No. 150 to No.180 mesh abrasivesThe most popular finishes |
| HL(Hair Line) | 0.4mm~3.0mm | Finished by continuous linear polishing |
ASTM / ASME SA240 Type 301 Steel Plate Types
| 301 1/4 Hard Tempered Stainless Steel Sheets | 301 Stainless Steel 1/4 Hard Cold Rolled Strip |
| 2B finish 301 stainless steel sheet | SUS 301 Cut to size stainless steel plate |
| 301 Stainless Steel 1/4 Hard Sheet | 301 1 2 Hard Stainless Steel Sheet |
| Cold rolled Stainless Steel 301 sheet | Stainless Steel 301 Hot Rolled plate |
| 2B BA Hairline Mirror finish stainless steel 301 sheet | Brush Stainless Steel 301 Plate |
| BS EN 10088-2 Diamond Stainless Steel 301 Plate | 301 Polished Stainless Steel Sheet |
| ASTM A240 Type 301 Perforated Stainless Steel Sheet | 301 Stainless Steel 2B Plate |
| AISI 301 Plate | 301 Stainless Steel Cold Rolled Coils |
| 8K Mirror Finish Stainless Steel 301 Sheet | 301 Hairline Stainless Steel Sheet |
| No.4 Stainless Steel 301 Sheet | Stainless Steel 301 Diamond Plate |
| 301 Stainless Spring Steel Sheet | Stainless Steel 301 Rolls Sheets |
| 301 Full Hard Stainless Steel Design Sheet | Stainless Steel 301 Expanded Sheet |
| Stainless Steel 301 Clad Plate | Stainless Steel 301 Strip |
| 301 1 4 hard Stainless Steel Sheet | Stainless Steel 301 Quarto Plate |
| Stainless Steel 301 Galvanized Sheets | Stainless Steel 301 Perforated Sheet |
| SS 301 CR Sheet | SS 301 HR Plate |
| Stainless Steel 301 Cold Rolled Plates | Austenitic Stainless Steel 301 Sheet |
| Bright Annealed SS 301 Sheet | 301 Full Hard Stainless Steel Sheet |
| SS 301 HR Sheets | ASTM A240 Grade 301 Sheets |
| Stainless Steel 301 Floor Sheet | 301 High Yield Stainless Steel Diamond Sheet |
| Stainless Steel 301 Coils |
301 Stainless Steel Data Sheet
301 Stainless Steel Sheet Compositions
| Chemical Composition Limits | |||||||||
| Weight% | C | Si | Mn | P + S max | Cr | Ni | Cu | Mo | Fe |
| AISI 301 | 0.15 max | 1.00 max | 2.0 max | 0.040 P 0.030 S | 16-18 | 6-8 | 0.75 max | 0.75 max | Bal |
301 SS Plates Mechanical Properties
| Condition | Tensile Strength Min | 0.2% Yield Strength Min | Elongation % in 2″ (50.8mm) | Hardness HRC | ||
|---|---|---|---|---|---|---|
| Ksi | MPa | Ksi | MPa | |||
| AMS 5901 301 Annealed | 75 | 515 | 30 | 205 | 40 | 92 HRB |
| AMS 5517 301 1/4 Hard | 125 | 862 | 75 | 517 | 25 | 25 |
| AMS 5518 301 1/2 Hard | 150 | 1,034 | 110 | 758 | 18 | 32 |
| AMS 5902 301 3/4 Hard | 175 | 1,207 | 125 | 931 | 12 | 37 |
| AMS 5519 301 Full Hard | 185 | 1,276 | 140 | 965 | 9 | 41 |
301 Stainless Steel Plate Physical Properties
» Melting Range: 2250-2950°F (1399-1421°C)
» Density: 0.2850 lb/in3 (7.88g/cm3
» Specific Gravity: 8.03
» Modulus of Elasticity in Tension: 28•106 psi (193 GPa)*
| Temperature Range | Mean Coefficient of Thermal Expansion | ||
|---|---|---|---|
| °C | °F | cm/cm°C | in/in/°F |
| 20-100 | 68-212 | 16.6·10-6 | 9.2·10-6 |
| 20-300 | 68-572 | 17.6·10-6 | 9.8·10-6 |
| 20-500 | 68-932 | 18.6·10-6 | 10.3·10-6 |
| 20-700 | 68-1292 | 19.5·10-6 | 10.8·10-6 |
| 20-871 | 68-1600 | 19.8·10-6 | 11.0·10-6 |
301 Stainless Steel Plate Dimensions, AISI 301 Sheet Sizes
No. 2B Finish Stainless Steel 301 Plates — Cold Rolled, Annealed
*No 2D Finish |No. 3 Finish — Polished One Side|No. 4 Finish — Polished One Side
Stainless Steel Gauge, Width and Length | Weight Lbs. per Sq Ft. | Est. Wt. per Plate |
|---|---|---|
| 7GA (.1874″) | ||
| 48 x 96 | 7.871 | 251.9 |
| 48 x 120 | 7.871 | 314.8 |
| 48 x 144 | 7.871 | 377.8 |
| 10GA (.135”) | ||
| 36 x 120 | 5.670 | 170.1 |
| 48 x 96 | 5.670 | 181.4 |
| 48 x 120 | 5.670 | 226.8 |
| 60 x 120* | 5.670 | 283.5 |
| 60 x 144* | 5.670 | 340.2 |
| 72 x 120* | 5.670 | 340.2 |
| 11 GA (.120″) | ||
| 36 x 96 | 5.040 | 121.0 |
| 36 x 120 | 5.040 | 151.2 |
| 36 x 144 | 5.040 | 181.4 |
| 48 x 96 | 5.040 | 161.3 |
| 48 x 120 | 5.040 | 304.6 |
| 48 x 144 | 5.040 | 241.9 |
| 60 x 120 | 5.040 | 252.0 |
| 60 x 144 | 5.040 | 302.4 |
| 72 x 120* | 5.040 | 302.4 |
| 72 x 144* | 5.040 | 362.9 |
| 12 Ga. (.105″) | ||
| 36 x 96 | 4.410 | 105.8 |
| 36 x 120 | 4.410 | 132.3 |
| 36 x 144 | 4.410 | 158.8 |
| 42 x 120 | 4.410 | 154.4 |
| 48 x 96 | 4.410 | 141.1 |
| 48 x 120 | 4.410 | 176.4 |
| 48 x 144 | 4.410 | 211.7 |
| 60 x 96 | 4.410 | 176.4 |
| 60 x 120 | 4.410 | 220.5 |
| 60 x 144 | 4.410 | 264.6 |
| 72 x 120* | 4.410 | 264.6 |
| 72 x 144 | 4.410 | 317.5 |
| 13 Ga (.090″) | ||
| 36 x 96 | 3.780 | 90.72 |
| 36 x 120 | 3.780 | 113.4 |
| 48 x 120 | 3.780 | 151.2 |
| 14 Ga. (.075″) | ||
| 30 x 120 | 3.150 | 78.75 |
| 36 x 96 | 3.150 | 75.60 |
| 36 x 120 | 3.150 | 94.50 |
| 36 x 144 | 3.150 | 113.4 |
| 42 x 120 | 3.150 | 110.3 |
| 42 x 144 | 3.150 | 132.3 |
| 48 x 96 | 3.150 | 100.8 |
| 48 x 120 | 3.150 | 126.0 |
| 48 x 144 | 3.150 | 151.2 |
| 60 x 120 | 3.150 | 157.5 |
| 60 x 144 | 3.150 | 189.0 |
| 72 x 120 | 3.150 | 189.0 |
| 72 x 144 | 3.150 | 226.8 |
| 16 Ga. (.060″) | ||
| 30 x 96 | 2.520 | 50.40 |
| 30 x 120 | 2.520 | 63.00 |
| 36 x 96 | 2.520 | 60.48 |
| 36 x 120 | 2.520 | 75.60 |
| 36 x 144 | 2.520 | 90.72 |
| 42 x 120 | 2.520 | 88.20 |
| 48 x 96 | 2.520 | 80.64 |
| 48 x 120 | 2.520 | 100.8 |
| 48 x 144 | 2.520 | 121.0 |
| 60 x 96 | 2.520 | 100.8 |
| 60 x 120 | 2.520 | 126.0 |
| 60 x 144 | 2.520 | 151.2 |
| 18 Ga. (.048″) | ||
| 30 x 96 | 2.016 | 40.32 |
| 30 x 120 | 2.016 | 50.40 |
| 36 x 96 | 2.016 | 48.38 |
| 36 x 120 | 2.016 | 60.48 |
| 36 x 144 | 2.016 | 72.58 |
| 42 x 120 | 2.016 | 70.56 |
| 48 x 96 | 2.016 | 64.51 |
| 48 x 120 | 2.016 | 80.64 |
| 48 x 144 | 2.016 | 96.77 |
| 60 x 120 | 2.016 | 100.8 |
| 60 x 144 | 2.016 | 121.0 |
| 19 Ga. (.042″) | ||
| 36 x 120 | 1.764 | 52.92 |
| 20 Ga. (.036″) | ||
| 30 x 96 | 1.512 | 30.24 |
| 30 x 120 | 1.512 | 37.80 |
| 36 x 96 | 1.512 | 36.29 |
| 36 x 120 | 1.512 | 45.36 |
| 36 x 144 | 1.512 | 54.43 |
| 42 x 120 | 1.512 | 52.92 |
| 48 x 96 | 1.512 | 48.38 |
| 48 x 120 | 1.512 | 60.48 |
| 48 x 144 | 1.512 | 72.58 |
| 22 Ga. (.030″) | ||
| 30 x 96 | 1.260 | 25.20 |
| 30 x 120 | 1.260 | 61.50 |
| 36 x 96 | 1.260 | 30.24 |
| 36 x 120 | 1.260 | 37.80 |
| 36 x 144 | 1.260 | 45.36 |
| 48 x 96 | 1.260 | 40.32 |
| 48 x 120 | 1.260 | 50.40 |
| 24 Ga. (.024″) | ||
| 30 x 96 | 1.008 | 20.16 |
| 30 x 120 | 1.008 | 25.20 |
| 36 x 96 | 1.008 | 24.19 |
| 36 x 120 | 1.008 | 30.24 |
| 48 x 96 | 1.008 | 32.26 |
| 48 x 120 | 1.008 | 40.32 |
| 26 Ga. (.018″) | ||
| 30 x 96 | .7560 | 15.12 |
| 30 x 120 | .7560 | 18.90 |
| 36 x 96 | .7560 | 18.14 |
| 36 x 120 | .7560 | 22.68 |
| 48 x 96 | .7560 | 24.1 |
| 48 x 120 | .7560 | 30.24 |
| 28 Ga. (.015″) | ||
| 36 x 96 | .630 | 15.12 |
| 36 x 120 | .630 | 18.90 |
