ANSI B16.5 / ASME B16.47 Stainless Steel Flanges Manufacturers in Mumbai, India
ASME B16.5 Flanges Suppliers
Professional and most reliable Exporters and Suppliers of ASME SA182 / ASTM A182 SS 304, 316 Flanges all over the world but highly demanded in Iran, Thailand, Kuwait, Oman, US, UK, Iraq, Turkey, UAE (Dubai), Italy, Vietnam, Bhutan, Qatar.
To Satisfy the urgent need of the customers we keep intensive stock of Industrial Flanges Manufactured using different standards like DIN, EN1092-1, UNI, API 6A, ANSI, ASME B16.47 Series A & B, AWWA C207, GOST, BS10, PSI, GB, JIS/KS, BS4504 Flange in all Dimensions and Classes.
A flange is a cast ring or forged of steel designed to connect mechanically two sections of steel pipe or join pipe to a pressure pump, vessel, valve or any other piece of equipment. Same standard flanges can either be flat face or raised face.
Metal Nation Alloys is one of the prominent supplier and Exporter of Stainless Steel Flanges most demanding grades are SS 304, 304L, 316, 316L, and 904L. Stainless steel is one of the most popular and demanding metals from our client. Due to its physical properties including good corrosion resistance, durability, and many others, this metal scores over several other metals.

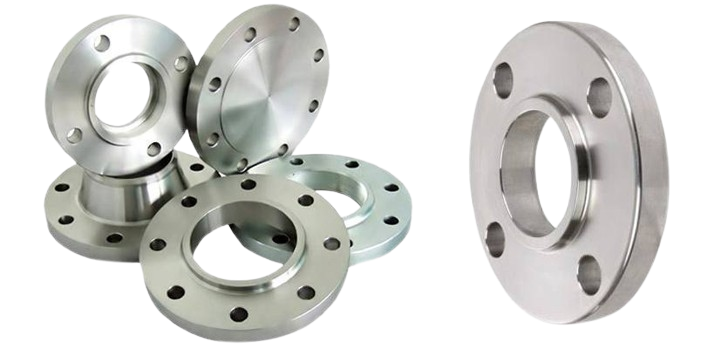

Most used types of flanges by various industries are
- Weld Neck Flanges: WN flanges are distinguished by their protruding necks. The weld neck flange has the same bevel and thickness of the pipe. This flange is considered for severe service conditions such as high pressure and high temperatures or sub-zero.
- Slip-On Flanges: SO Flange are the most affordable Type of flanges available for purchase. The slip-on flange have a slightly bigger diameter than the pipe, which helps it easier to slip them over the pipe. These SS SO flanges are fillet welded to a position and are ideal for low-pressure applications.
- Blind Flanges: BL flanges are designed without a bore and are used to seal piping systems or vessel openings. These flanges are ideal for Vessels or piping systems that require regular inspection. SS Blind flange can easily handle high stress caused due to internal pressure.
- Threaded Flanges: SS Threaded flanges are used for special applications and can be easily assembled without welding. SS threaded flanges are compatible with pipes with external threads. For the applications where bending stresses, high pressure or high temperatures are involved, threaded flanges are not recommended.
- Lap Joint Flanges: LJ / Loose Flanges are the type of slip-on flanges that are used with stub end fittings. Lap-Joint flanges are ideal for piping systems that require regular inspection and maintenance such as low carbon steel pipes or alloy steel pipes.
- Socket Weld Flanges: SW flanges are designed for use on small diameter and high-pressure piping. The SS socket weld flange has internal welds which contribute to their durability as well as fatigue strengths. Socket weld flanges are used in the chemical processing industry.
- Orifice Flanges: The function of orifice steel flange is to provide access to a line for metering liquids or gases. The orifice flanges are installed with orifice plates or flow nozzles.
- Ring–Type Joint Flanges: RTJ flanges are used for high pressure and temperature applications. The SS RTJ flanges feature a groove that can be easily compressed on slip-on, blind, or weld neck flange. Where media is transferred at high pressure and high-temperature RTJ flange helps to avoid leaks in pipelines.
Stainless Steel Flanges Specifications
| Product | Industrial Steel Pipe Flange |
|---|---|
| Size | ½” (15 NB) to 48″ (1200NB) |
| Class | 2500 LBS, 1500 LBS, 900 LBS, 600 LBS, 300 LBS, 150 LBS, DIN Standard ND-6, 10, 16, 25, 40 Etc. |
| DIN | DIN2673, DIN2638, DIN2637, DIN2636, DIN2635, DIN2634, DIN2633, DIN2632, DIN2631, DIN2629, DIN2628, DIN2627, DIN2656, DIN2655, DIN2642, DIN2641, DIN2576, DIN2573, DIN2566, DIN2527 |
| BS | BS4504, BS4504, BS1560, BS10 |
| In Form | LAP Joint, Threaded, Reducing, Spectacle, SORF, WNRF, BLRF, SWRF, etc |
| Standard | ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, DIN, JIS, SABS1123, GOST-12820, BS 4504, EN1092, UNI 2277/2278 |
| Coating/Surface Treatment | Anti-rust Paint, Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized |
| Types of Connection | Lap-Joint Face, Raised Face, Ring Type Joint, Flat Face, Large Male-Female, Small Male-Female, Large, Small Tongue & Groove |
| Flange Face Type | Flat Face (FF), Raised Face (RF), Ring Joint (RJT) |
| Dimensions | ANSI B16.47 Series A & B, ANSI B16.5, MSS SP44, ASA, API-605, AWWA |
| Flange Packing | No Fumigate or Fumigate Plywood/Wood Pallet or Case |
| Usage/Applications | Offshore, Water System, Oil Field, Natural Gas, Shipbuilding, Electric Power, Pipe Projects, etc. |
| Common types of Flanges | Forged / Screwed / Threaded / Plate |
| Production Technique | Forged, Heat treated and machined |
| Value-Added Services: | CNC Machining, Customised Flanges |
| We are Specialize in Making Flanges As Per The Drawings | |
Industrial Flange Manufacturing Materials & Grades
| Stainless Steel Flange | Equivalent Grades | Chemical Composition | Mechanical Properties |
|---|
| ASTM A182, A240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L, 202. |
| Alloy Steel Flange | Chemical Composition | Mechanical Properties | ASTM A182 |
| ASTM A182 / ASME SA182 & A387 F1, F5, F9, F11, F12, F22, F91. |
| Carbon Steel Flange | Chemical Composition | Mechanical Properties |
| ASTM A105 / ASME SA105, ASTM A350 / ASME SA350, ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52. |
| Other Steel Flange | Chemical Composition | Mechanical Properties | Equivalent Grades |
| Alloy 20, Alloy C, Alloy C276, Alloy B2, SMO 254, AISI 4130. |
| Low-Temperature Steel Flange |
| ASTM A350 LF2, LF3, LF6. |
| High Yield Flange |
| ASTM A694 F42, F52, F60, F65, F70. |
| Duplex Steel Flange | Chemical Composition | Mechanical Properties | Equivalent Grades |
| ASTM / ASME A/SA 182 F 44, F 45, F 51, F 53, F 55, F 60, F 61. |
| Super Duplex Flange | Chemical Composition | Mechanical Properties | Equivalent Grades |
| ASTM / ASME A/SA 182 F 44, F 45, F 51, F 53, F 55, F 60, F 61. |
| Copper Alloy Flange | Chemical Composition | Mechanical Properties | Equivalent Grades |
| ASTM SB 61, SB62, SB151, SB152 – UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200. |
| Nickel Alloy Flange | Chemical Composition | Mechanical Properties | Equivalent Grades |
| ASTM SB564, SB160, SB472, SB162 – Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020). |

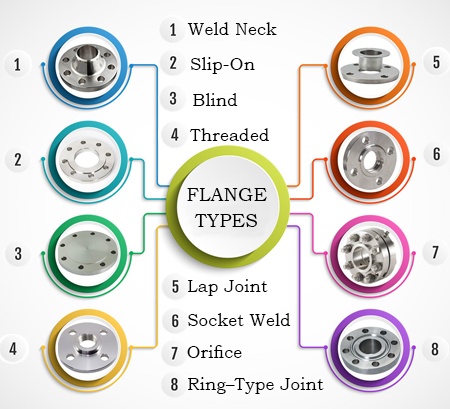

ASME B16.5 Flange Types
Note: Prices are based on material grades and minimum order quantity. Send us inquiry to get market leading prices in India.
ANSI/ASME B16.5 Stainless Steel Flange Dimensions
Metal Nation Alloys test and used the highest quality of raw material to manufacture Stainless Steel(SS) 304 / 304L / 316 / 316L / 202 / 904L Flange. Other Materials used in Manufacturing of Flanges are Carbon Steel(CS), Alloy Steel, Mild Steel(MS), Hastelloy Steel, Monel Steel, Alloy 20 Steel, 254 SMO Steel, Inconel Steel, Titanium Steel, Duplex Steel, Nickel Alloy Steel, Super Duplex Steel, Incoloy Steel, Copper Nickel Steel, Aluminium, Bronze, Brass.
Flange Class 150 LBS Dimensions
| Normal pipe size | Outside dia. of flange | Minimum thickness of flange | Overall Length | Bolt Circle | No. and Size of Holes | O.D. of raised face | |||
|---|---|---|---|---|---|---|---|---|---|
| Welding neck | Slip-on & socket welding | Lap Joint | |||||||
| O | Q | Y | Diam. | No. | dia. | R | |||
| 1/2 | 89 | 11.2 | 47.6 | 15.9 | 15.9 | 60.5 | 4 | 15 | 35 |
| 3/4 | 117 | 15.9 | 57.2 | 25.4 | 25.4 | 82.5 | 4 | 15 | 43 |
| 1 | 108 | 14.3 | 55.6 | 17.5 | 17.5 | 79.5 | 4 | 15 | 51 |
| 1.1/4 | 117 | 15.9 | 57.2 | 20.6 | 20.6 | 89.0 | 4 | 15 | 64 |
| 1.1/2 | 127 | 17.5 | 61.9 | 22.2 | 22.2 | 98.5 | 4 | 15 | 73 |
| 2 | 152 | 19.1 | 63.5 | 25.4 | 25.4 | 120.5 | 4 | 19 | 92 |
| 2.1/2 | 178 | 22.3 | 69.8 | 28.6 | 28.6 | 139.5 | 4 | 19 | 105 |
| 3 | 190 | 23.9 | 69.8 | 30.2 | 30.2 | 152.5 | 4 | 19 | 127 |
| 3.1/2 | 216 | 23.9 | 71.4 | 31.8 | 31.8 | 178.0 | 8 | 19 | 140 |
| 4 | 229 | 23.9 | 86.2 | 33.3 | 33.3 | 190.5 | 8 | 19 | 157 |
| 5 | 254 | 23.9 | 88.9 | 36.5 | 36.5 | 216.0 | 8 | 22 | 186 |
| 6 | 279 | 25.4 | 88.9 | 39.7 | 39.7 | 241.5 | 8 | 22 | 216 |
| 8 | 343 | 28.6 | 101.6 | 44.4 | 44.4 | 298.5 | 8 | 22 | 270 |
| 10 | 406 | 30.2 | 101.6 | 49.2 | 49.2 | 362.0 | 12 | 25 | 324 |
| 12 | 483 | 31.8 | 114.3 | 55.6 | 55.6 | 432.0 | 12 | 25 | 381 |
| 14 | 533 | 35.0 | 127.0 | 57.2 | 79.4 | 476.0 | 12 | 29 | 413 |
| 16 | 597 | 36.6 | 127.0 | 63.5 | 87.3 | 539.5 | 16 | 29 | 470 |
| 18 | 635 | 39.7 | 139.7 | 68.3 | 96.8 | 578.0 | 16 | 32 | 533 |
| 20 | 698 | 42.9 | 144.5 | 73.0 | 103.2 | 635.0 | 20 | 32 | 584 |
| 24 | 813 | 47.7 | 152.4 | 82.6 | 111.1 | 749.5 | 20 | 35 | 692 |
Prime Countries Where We Supply & Export
Metal Nation Alloys is an ISO, OHSAS, and PED Certified Company largely engage in manufacturing, stocking, exporting, and supplying of ASTM A182 SS 304/316 Flanges in domestic and overseas. We produce these ANSI/ASME B16.5 Flanges using all kind of industrial high quality raw materials. We possess a large warehouse that enables us to keep huge stock of our products thus we provide a perennial supply of goods to our customers. Click Below Tabs to check country and city list.
| Afghanistan | Algeria | Angola |
| Argentina | Australia | Austria |
| Azerbaijan | Bahrain | Bangladesh |
| Belarus | Belgium | Bhutan |
| Bolivia | Brazil | Bulgaria |
| Canada | Chile | China |
| Colombia | Costa Rica | Croatia |
| Czech Republic |
ANSI B16.5 / ASME B16.47 SS Flange Used in
Utmost care is taken towards the packing of the Flanges so as to ensure that the resultant Products reach in the same condition as desired by our customers from varied industries. We focus on every procedure to assure quality, the package we usually prefer is environmental poly bags, and then in free fumigation wooden cases or plate. Also can accept a customized package of Stainless Steel Flange such as OEM by negotiation. We offer just about everything to meet your 304/316 SS Flanges pack requirements. A Lot of emphases is placed on the packing and packaging. The SS ANSI B16.5 / ASME B16.47 Flange is packed in wooden corrugated boxes foiled in plastic wraps and bubble wraps. Below are Application Industries where we supply and export.
